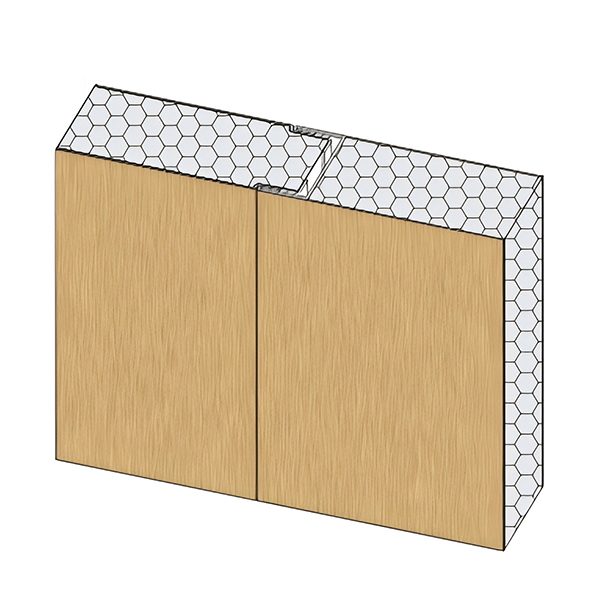

B-15 Bulkhead
Description
The face and back panels of composite aluminum honeycomb panels are made of metal materials such as film‑coated steel sheet, stainless steel sheet and aluminum sheet. After roll forming from coil stock, they are bonded integrally with aluminum honeycomb cores by fully‑automatic glue‑spraying and hot‑press forming technology. Widely applied for wall claddings and ceiling panels in ship cabins, passageways, wheelhouses and other areas.
| 型号 | 规格说明 |
|---|---|
| L2、L3、L5 型 "B‑0" 级衬板 | 复合铝蜂窝板厚度有 25 mm、30 mm |
| C3 型 "B‑0" 级天花板 | 复合铝蜂窝板厚度为 25 mm |
| B1、B3 型"B‑15" 级壁板 | 复合铝蜂窝板厚度为 50 mm |
Composite Aluminum Honeycomb Panel Series‑Product Specifications
| 序号 | 产品名称 | 型号 | 防火等级 | 板型 | 厚度 |
|---|---|---|---|---|---|
| 1 | 衬板 | FS‑L2‑L | B0 | C型 | 25 mm |
| 2 | 衬板 | FS‑L3‑L | B0 | C型 | 30 mm |
| 3 | 衬板 | FS‑L5‑L | B0 | A型 | 25 mm |
| 4 | 天花板 | FS‑C3‑L | B0 | A型 | 25 mm |
| 5 | 壁板 | FS‑B1‑L | B15 | C型 | 50 mm |
| 6 | 壁板 | FS‑B3‑L | B15 | A型 | 50 mm |
