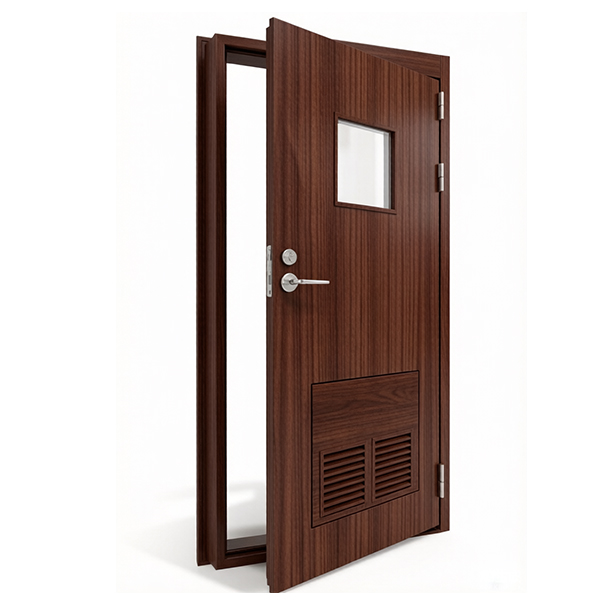

FS-MB15-5 Type B-15 Fire Door (with Vision Panel, Escape Opening, and Box Frame)
Description
The door frames and door leaves are made of steel plate, stainless steel and other materials. The interior of door leaves is filled with fire‑resistant and heat‑insulating materials such as rock wool and fire‑proof board. Equipped with fire‑resistant glass, escape hatches and other devices according to fire‑protection requirements of different areas.
| 产品型号 | 说明 |
|---|---|
| MAO‑1 型 | "A‑0" 级防火门 |
| MA60‑1 型 | "A‑60" 级防火门 |
| SMA60‑1 型 | "A‑60" 级双扇防火门（带观察窗及消防水带口） |
| B15‑1 型 | "B‑15" 级防火门（带观察窗及逃生口风栅） |
| MB15‑YJX 型 | "A‑0" 级防火门(箱框) |
| MB15‑PJX 型 | "A‑60" 级防火门（带观察窗及消防水带口箱框） |
| MA60‑2 型 | "A‑60" 级双扇防火门（带观察窗及消防水带口箱框） |
| MB15‑2 型 | "B‑15" 级防火门（带观察窗及逃口风栅H框） |
| MB15‑4 型 | "B‑15" 级隐形铰链检修门（墙板用） |
| MB15‑5 型 | "B‑15" 级排铰链检修门（天花板用） |
Product Specification Sheet for Fire‑Resistant Door Series
| 序号 | 型号 | 防火等级 | 门扇厚度 | 通孔尺寸 | 附件 |
|---|---|---|---|---|---|
| 1 | FS‑MAO‑1 | A0 | 40 mm | 1200 × 2200 mm | |
| 2 | FS‑MA60‑1 | A60 | 40 mm | 1200 × 2200 mm | 观察窗、消防水带口 |
| 3 | FS‑SMA60‑1 | A60 | 40 mm | 1200 × 2200 mm | 观察窗、消防水带口 |
| 4 | FS‑MB15‑1 | B15 | 40 mm | 1200 × 2200 mm | 观察窗、逃生口风栅 |
| 5 | FS‑MB15‑YJX | B15 | 25 mm | 800 × 2050 mm | 隐形铰链检修门（墙板用） |
| 6 | FS‑MB15‑PJX | B15 | 25 mm | 600 × 830 mm | 排铰链检修门（天花板用） |
| 7 | FS‑MA60‑2 | A60 | 40 mm | 1180 × 2250 mm | 单扇风雨密气密防火门(室内双层门框) |
| 8 | FS‑MB15‑2 | B15 | 50 mm | 1000 × 2100 mm | 高隔声、带观察窗 |
| 9 | FS‑MB15‑4 | B15 | 40 mm | 1100 × 2200 mm | 智能锁无包边平门槛带观察窗逃生口H框 |
| 10 | FS‑MB15‑5 | B15 | 40 mm | 1100 × 2200 mm | 带观察窗逃生口箱框 |
